Purpose and Usage
Exports entities and all dependencies from a Gateway.
  • You can specify full export or select specific entities.
  • All dependencies of selected entities are included in the bundle.
Export Formats
The default format is single file, but you can specify directory for exporting.
migrateOut --format singleFile
migrateOut --format directory
Default Mapping Actions
Use the
--defaultAction
 arguments to specify how to map entities during export.
  • NewOrExisting
    If existing entity is found, map to this existing entity (no update). If existing entity is not found, create a new one.
  • NewOrUpdate
    If existing entity is found, map and update the existing entity using information from the bundle. If existing entity is not found, create a new one.
  • Ignore
    Blacklists all the entities, causing the entire bundle to be ignored during migrateIn. Ideal for dealing with large migration bundles, where you want to migrate only a small portion. This option allows you to whitelist only those entities you want to migrate.
If Solution Kit read-only entities are being exported, their mapping defaults to
NewOrExisting
, regardless of the action specified.
Dependencies
You can export bundle with or without dependencies. The following parameters are used:
  • includeOnlyServicePolicy:
     This parameter exports bundle without dependencies.
  • includeOnlyDependencies:
     This parameter exports bundle with dependencies.
Export Output Files

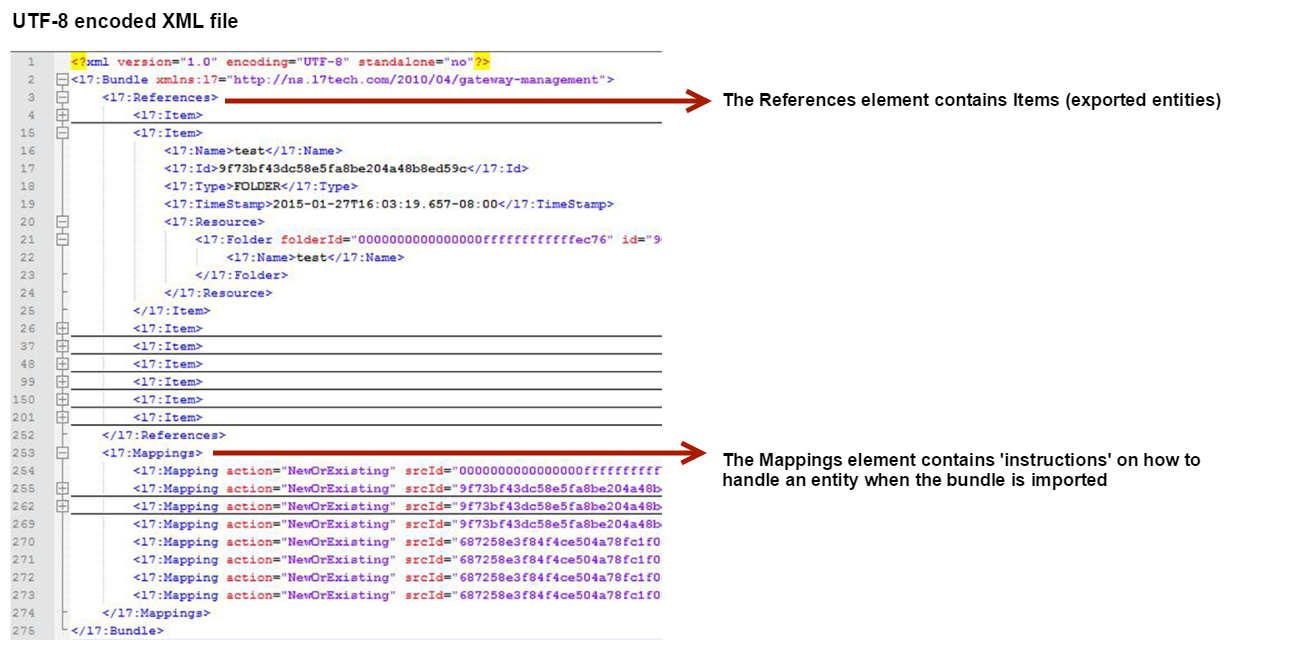

If you
migrateOut
 with the file format (
--format singleFile
), you get a file containing the bundle xml.
UTF8_Encoded_XML
UTF8_Encoded_XML

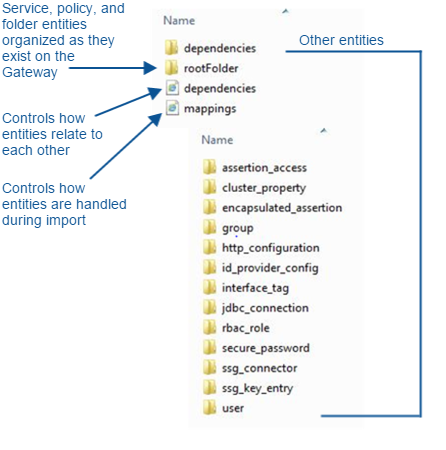

If you
migrateOut
 with the directory format (
--format directory
), you get these outputs:
bundle_output_annotated
bundle_output_annotated
If you edit the output file, you can break the integrity of the bundle. Edit files with care.
Examples: migrateOut, full export
Export all entities from a Gateway.
Full Gateway, single file format
In this example, the
--encryptionPassphrase
 argument is included in the commonargument.properties file.
$ ./GatewayMigrationUtility.sh migrateOut --argFile commonarguments.properties --all --dest all.xml
Full G
ateway, folder format
Creates a folder ‘all’.
$ ./GatewayMigrationUtility.sh migrateOut --argFile commonarguments.properties --all --dest all --format directory
Examples: migrateOut, partial export
Export parts of a Gateway: policies, services, and folders.
Export specific folder
$ ./GatewayMigrationUtility.sh migrateOut --argFile commonarguments.properties --dest F1.xml --folderName /F1
Be sure to include the full path to the folder in "–folderName".
Export specific service and policy
$ ./GatewayMigrationUtility.sh migrateOut --argFile commonarguments.properties --dest mixed.xml --serviceName? /F1/F1.1/Test Service--policyName 'F1/Test Policy
Export service by id
$ ./GatewayMigrationUtility.sh migrateOut --argFile commonarguments.properties --dest svcById.xml --service 5ecae07f6e194aae459f7f37022158b4
Export bundle without dependencies
$ ./GatewayMigrationUtility.sh migrateOut --argFile commonarguments.properties --folderName /F1 --dest F1.xml –includeOnlyServicePolicy
Export bundle with dependencies
$ ./GatewayMigrationUtility.sh migrateOut --argFile commonarguments.properties --folderName /F1 --dest F1.xml –includeOnlyDependencies
Example: Default Mapping Actions
GatewayMigrationUtility.bat migrateOut --argFile Src.properties --all --dest bundle.xml --defaultAction Ignore --trustCertificate -trustHostname
  You can also export dependencies for full Gateway and folder format.
