Working with Multiple Service Principal Names

The can be configured to handle multiple Service Principal Names (SPN) in a Kerberos keytab file. This allows the Gateway to perform Kerberos authentication in these scenarios:
gateway83
The
API Gateway
 can be configured to handle multiple Service Principal Names (SPN) in a Kerberos keytab file. This allows the Gateway to perform Kerberos authentication in these scenarios:

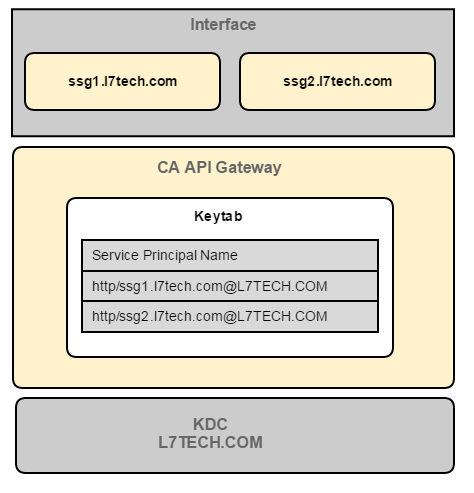

  • Scenario 1:
     One Gateway cluster that has been assigned multiple DNS host names, each with their own Virtual IP (VIP):
    Multiple_Service_Principal_Names2
    Multiple_Service_Principal_Names2

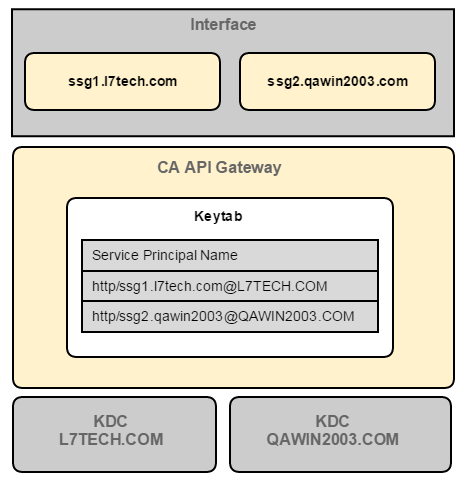

  • Scenario 2:
     Multiple domains:
    Multiple_Domains_Name_Services
    Multiple_Domains_Name_Services
To enable the Gateway for multiple Service Principal Names:
  1. Open the
    system.properties
     file in a text editor.
    /opt/SecureSpan/Gateway/node/default/etc/conf/system.properties
  2. Add the following property:
    com.l7tech.kerberos.useSpnFromInboundTicket=true
  3. Save and close the file.
To create multiple service principals in the keytab file (Windows)
:
  • On the Active Directory machine, run the following command:
    ktpass - princ http/
    <Gateway_host>
    @
    <Realm>
     - mapuser
    <userName>
     -pass
    <userPassword>
     -in
    <kerberos_file_to_merge>
     - out
    <keytab_name>
    For example:
    ktpass -princ http/gateway.domain.com@DOMAIN.COM -mapuser gateway -pass password  - in kerberos.keytab -out kerberosMerged.keytab
    This produces the output file
    kerberosMerged.keytab
     which contains the multiple service principals. Install this keytab using Manage Kerberos Configuration.
To create multiple service principals in the keytab file (Linux)
:
  1. Copy the keytab to your Samba or UNIX server.
  2. Run the
    ktutil
     command on your Samba or UNIX server to merge your existing and new keytab together:
    ktutil:
    ktutil: read_kt keytab-number1
    ktutil: read_kt keytab-number2
    ktutil: write_kt krb5.keytab
    ktutil: quit
    Once this is done, install the keytab file using Manage Kerberos Configuration.
How the Gateway Determines the Principal
When multiple service principals are defined, this is how the various assertions determine which principal in the keytab to use:
  • Require Windows Integrated Authentication Credentials Assertion
    For this assertion, the Gateway uses the request URI to determine which principal in the keytab is used to handle the Windows authentication.
    Example: For a request for the http://ssg1.acmecorp.com/test.html page, the Gateway look up the service principal "http/ssg1.acmecorp.com" from the keytab file.
  • Route via HTTP(S) Assertion
    For this assertion, the Gateway use the routing URI to determine which principal in the keytab is used to handle the Windows authentication.
    Example:
     Routing to the
    http://ssg1.acmecorp.com/test.html
    page, the Gateway looks up the service principal "http/ssg1.acmecorp.com" from the keytab file.
  • Require WS-Security Kerberos Token Profile Credentials Assertion
    This assertion requires the use of the
    API Gateway
     -
    XML VPN Client
    .
    The Gateway uses the host name entered in the Gateway Account Properties (in the XML VPN Client) to determine which principal in the keytab is used to handle the Windows authentication.
    The Kerberos Name is not required unless the Kerberos name does not match the standard naming pattern "http/<
    GatewayHostName
    >".
