Manage Migration Mapping Conflicts

This topic describes how to resolve conflicts that can arise when migrating the gateway using the Gateway Migration Utility (GMU).
gateway83
This topic describes how to resolve conflicts that can arise when migrating the
CA API Gateway
 using the Gateway Migration Utility (GMU).
Migration: Success or Failure?
What Happens
: The mapping actions that you specify with
migrateOut
or
 manageMappings
commands determine how entities are mapped from source to target.
Where
: Migration results (success or failure) are saved in an XML file.
Results
Next Steps...
Test migrate in successful
You can confidently commit your migration. Review
<
results
>.xml
 to verify how entities were mapped.
Migrate in failed: Conflict
  • Find the conflicts using
    <results
    >.xml
     file
  • Create a mapping file to fix the conflicts

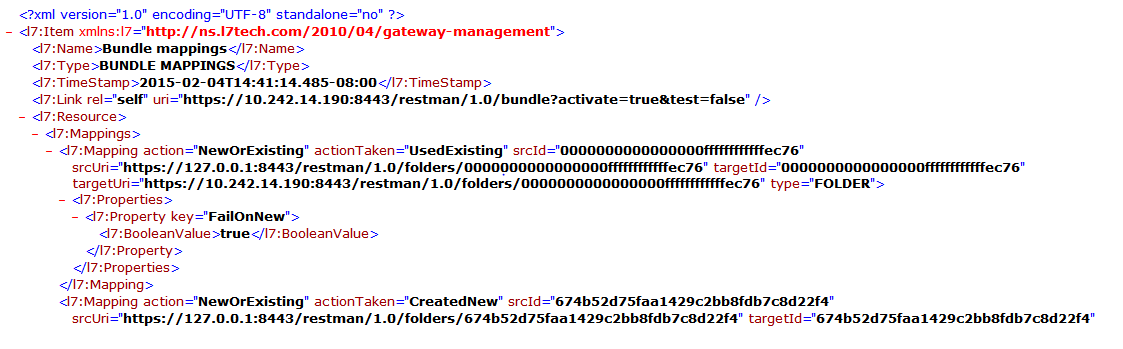

Example: results.xml

results_xml2
results_xml2
Types of Conflicts
If the migration fails, the
<
results
>.xml
 can contain these common mapping failures:
  • Target entity already exists
  • Target entity not found
  • Unique key conflict (usually name)
  • Cannot replace dependency
  • Invalid resource when updating an entity
Understanding the results.xml File
The
<
results
>.xml
 file tells you the mappings actions that were taken, based on the arguments that you have passed during
migrateOut
 or with a
mapping.xml
 file.
Action
Meaning
UsedExisting
Entity mapped to an existing entity on the target Gateway. Target entity was not updated.
UpdatedExisting
Entity mapped to an existing entity on the target Gateway. Target entity was updated.
CreatedNew
New entity was created on the target Gateway.
Deleted
Entity was deleted on the target Gateway.
Ignored
Entity was ignored and not imported.
Fix Errors
If migration fails, follow these steps:
  1. Open
    <
    results
    >.xml
     and search for the string, "errorMessage". For example:
    error_message2
    error_message2
  2. Fix errors or change the mappings using the
    manageMapping
     command.
    Always fix the
    first
     error in the <
    results
    >.xml file (rather than fixing errors from the bottom up). Entities are processed from top to bottom so this method is the most effective way to find the root cause.
  3. Retest the migration.
